SPECIFICATIONS

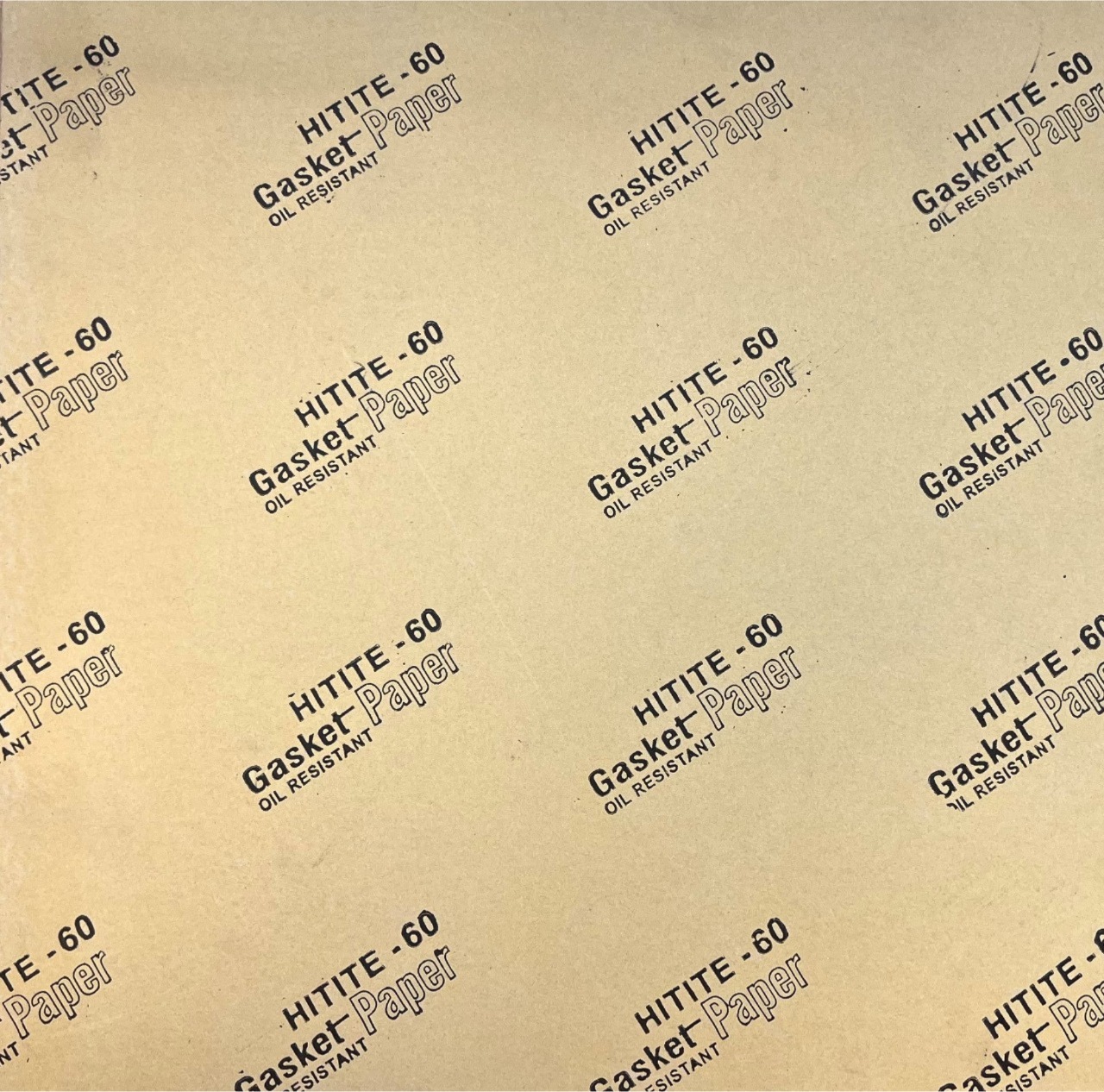

Cellulose Jointings (Grade : HITITE 60)
Non Asbestos Soft Gasket Material
| S.No. | Particular | - | HITITE-60 |
| 1 | Density (gms/cc) | - | 1.05 ± 0.05 |
| 2 | Tensile Strength (kg/cm²) | (Minimum) | 125 |
| 3 | Compressibility at 1000 psi(%) | - | 15-30 |
| 4 | Recovery (%) | (Minimum) | 35 |
| 5 | After immersion in ASTM Oil No. 3 for 22 Hrs. @ 21 - 29 °C | - | - |
| Weight increase (%) | (Maximum) | 45 | |
| Thickness increase (%) | (Maximum) | 10 | |
| 6 | After immersion in ASTM Fuel B for 22 Hrs. @ 21-29 °C | - | - |
| Weight increase (%) | (Maximum) | 40 | |
| Thickness increase (%) | (Maximum) | 10 | |
| 7 | After immersion in Water for 22 HRS.@21 - 29 ° C | - | - |
| Weight increase (%) | (Maximum) | 50 | |
| Thickness increase (%) | (Maximum) | 30 | |
| 8 | Dimensions | - | - |
| (a)Thickness | - | 0.25mm to 1.5mm | |
| (b)Size | (1) 0.25 mm - 0.9mm (2) 1.0mm -1.5mm |
(1)Rolls of 1200mm width (2)In sheets of 1200mm X 1000mm |
|
| (c)Thickness Tolerance | - | 0.25mm ± 0.08mm 0.40mm to 1.50mm ± 10% |
|
| 9 | ASTM Specification Compliance | - | F334166E52M5 |
05-05-2024
• Low density material made with high quality soft wood pulp and Nitrile rubber binders.
• Ideal for use as sealing material against Oil and Fuel leakage in areas such as carburetors, pumps , pipelines etc.
• Suitable for temprature upto 150°C
• Available in Yellow color
